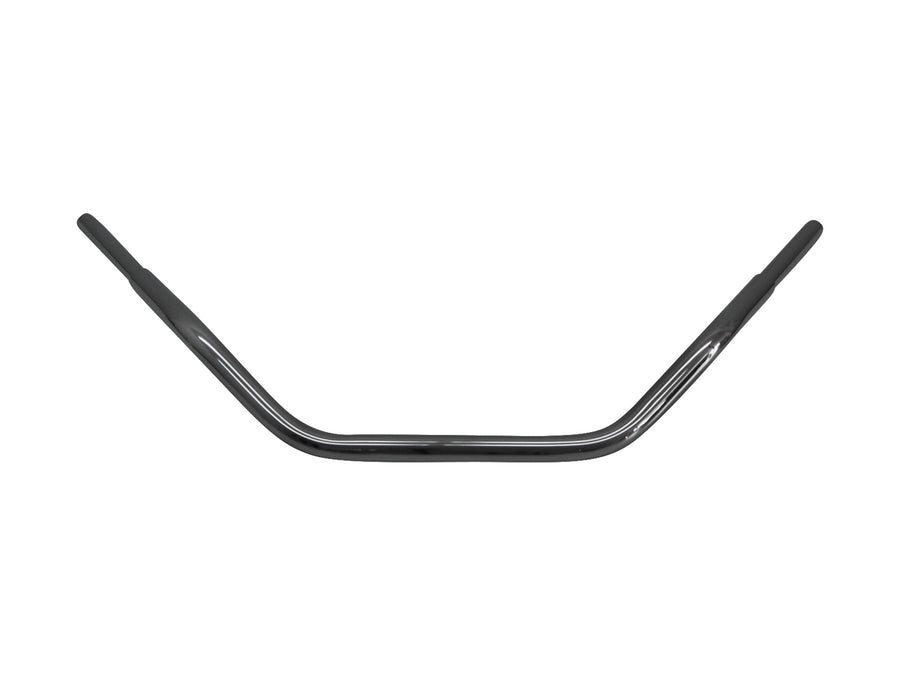

Motorcycle driver Ø 31 - handlebar for chopper and cruiser 930 mm wide, black

Product description: handlebar for chopper and cruiser 930 mm wide, black

The Fehling driver, model Ø 31, has been specially developed for chopper and cruisers and offers a width of 930 mm. This motorcycle driver is characterized by a robust construction and a black color. It is compatible with different motorcycle models, whereby the exact years of construction are not specified.

Technical details

• Diameter: Main pipe 31.75 mm (1 1/4 inches), handle ends 25.4 mm (1 inch)
• Care for electrical cables: Available, supports a decent cable guide
• Cable guidance: Equipped with a 3-hole configuration for an improved cable organization

Measure

The dimensions of the handlebar vary depending on the assembly position and can therefore deviate from the basic dimensions. Here is an overview of the basic dimensions:

• Width: 930 mm
• Height at the end of the external bend: 185 mm
• Depth back: 225 mm
• Height at the end of the end of the handle: 410 mm
• Intersection of the pipe outer edges: 345 mm
• Maximum grip length: 200 mm
• Maximum clamping width: 230 mm
• Knurling: Unavailable

These dimensions are important for the correct adjustment and assembly of the handlebar on your machine. Note that depending on the cultivation type and type of steering, deviations can occur in the dimensions.
