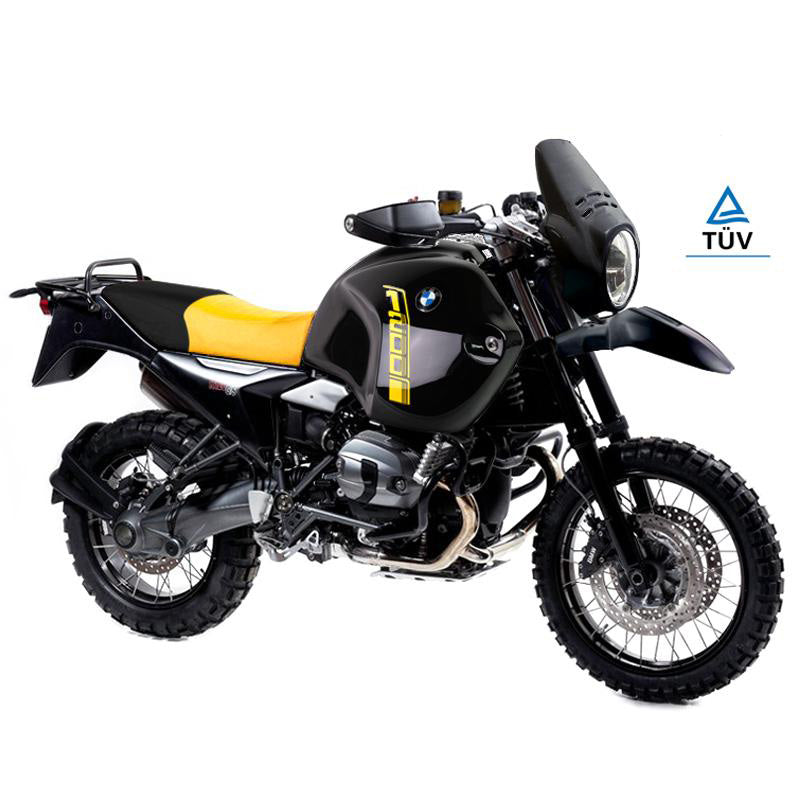

BMW R 1200 GS [2004-2012] - R120 40th Anniversary Kit 2004–2012

Comprehensive R120 G/S conversion styled after classic GS models

The R120 G/S 40th Anniversary Kit fundamentally changes the appearance of the BMW R 1200 GS without permanently modifying the original parts. It combines echoes of the GS from the 1980s with the comfort and rideability of the base motorcycle. Depending on the version, the kit is available for models from 2004 to 2007 or from 2008 to 2012.

According to the manufacturer, the replacement parts weigh a total of 6,4 kg less than the original components. Four kilograms of this saving are accounted for by components in front of the handlebars. This is intended to make the converted motorcycle easier to handle in the city and on mixed routes than the standard model.

Conversion and Reversal

• Manufacturer's stated installation time: approximately four hours
• No permanent modification of the removed original parts required
• Can be returned to the original vehicle configuration
• Installation video, screws, brackets and required accessories are included
• Some deliberately retained original parts must be transferred from the motorcycle

Tank Fairing and Seat

• Tank covers made of special resin with carbon fiber reinforcements, a matte finish, graphics and clear protection
• Supplied with holes, screws, rubber buffers, rear mounting bracket and turned bushings for the front mounting points
• Right tank side panel can be removed quickly for air filter maintenance
• Rear mounting bracket with a slot for accommodating a tank bag
• Black and yellow seat with high-frequency printed synthetic leather in the seating area and handmade side stitching in cotton thread
• Seat with its own frame for installation on the original mounting points
• The original seat lock and therefore the vehicle key are retained
• Full-grain leather tank strap, handmade in Italy and sewn with nylon thread

Fairing Components and Fenders

• Very lightweight side panels with R120 G/S graphics, mounting components, rubber parts and screws
• Clear adhesive protection for the frame
• Side panels designed to accommodate ADV bag frames and the designated brackets for original Vario cases
• Matte black rear fender for the original mounting points
• Tail light with bulb and wiring for the original connector
• Eyelets for turn signal cables and required screws
• Matte black front fender styled after GS models from the 1980s
• Lightweight side covers with a matte aluminum-colored finish, inserts and mounting screws

Depending on the designated version, the front fender can be mounted high on the headlight frame mounting points or low in the original position. According to the manufacturer, the matte black version is intended for low mounting.

Handlebar, Headlight and Front Assembly

• CNC-machined handlebar risers made of solid aluminum alloy with an anodized finish
• Unchanged position of the handlebars and upper section of the handlebar risers
• Front headlight with H11 bulbs included
• Optical unit from the R1200-R model
• Adjustable headlight with wiring and a compatible connector for the original system
• PRO headlight frame made of powder-coated steel
• Frame designed to accommodate the headlight, high front fender, turn signals and optional fairings
• Mounting option for the instrument panel using the three original rubber buffers
• Robust powder-coated fuel tank mounts suitable for the respective model-year group

Engine Protection and Oil Cooling

• Crash bar and engine guard made of highly durable powder-coated steel
• Additional side bar for increased protection during off-road falls
• Supplied with spacer bushings and screws
• Most maintenance work can be performed without removing the bar
• Powder-coated steel oil cooler bracket that also serves as an oil cooler guard
• Lightweight aluminum finned oil cooler
• Oil line set for positioning the oil cooler on the right side of the crash bar
• Lines with original steel clamps, connectors and upper copper seals
• The lower left connection remains in its original condition

Luggage Rack, Wind Protection and Graphics

• Powder-coated steel luggage rack
• Installed with aluminum spacers and original screws
• Integrated passenger grab handles
• Matte black ABS windshield in the revised style of the R80 GS PD
• Mounting clips for the windshield
• Separate racing decal set included

Scope of Delivery of the Base Kit

1. Tank covers
2. Black and yellow 40th Anniversary seat
3. Side panels
4. Rear fender
5. Front fender
6. Side covers
7. Handlebar risers
8. Headlight with H11 bulbs
9. PRO headlight frame
10. Fuel tank mounts for the selected model-year group
11. Crash bar and engine guard
12. Oil cooler bracket
13. Aluminum oil cooler
14. Oil line set
15. Luggage rack
16. ABS windshield
17. Decal set
18. Full-grain leather tank strap
19. Installation video, screws, brackets and installation accessories

Information on Case Systems and Original Parts

Original ADV aluminum cases with metal frames can be used in the R120-G/S configuration. The separately available Unit Garage case frame is required for original Vario plastic cases. The original Vario case mounts cannot be installed directly on the kit. Original R1200-GS logos and the optional covers for the case frame holes are not included in the kit.

The five upper original clips from the motorcycle are used to connect the tank covers. The supplied M5 × 12 mm button-head screws must be inserted into these clips. According to the manufacturer, the original pointed M5 screws must not be used, as they may damage the tank.

Compatibility

The kit is compatible with BMW R 1200 GS models from model years 2004 to 2012. When selecting, distinguish between the 2004–2007 and 2008–2012 versions. The manufacturer reserves the right to make changes to improve the efficiency of the kit; images may therefore show an earlier version.
