Yamaha Ténéré 700 World Rai [DENALI] - CANsmart™ Controller GEN II

Product description

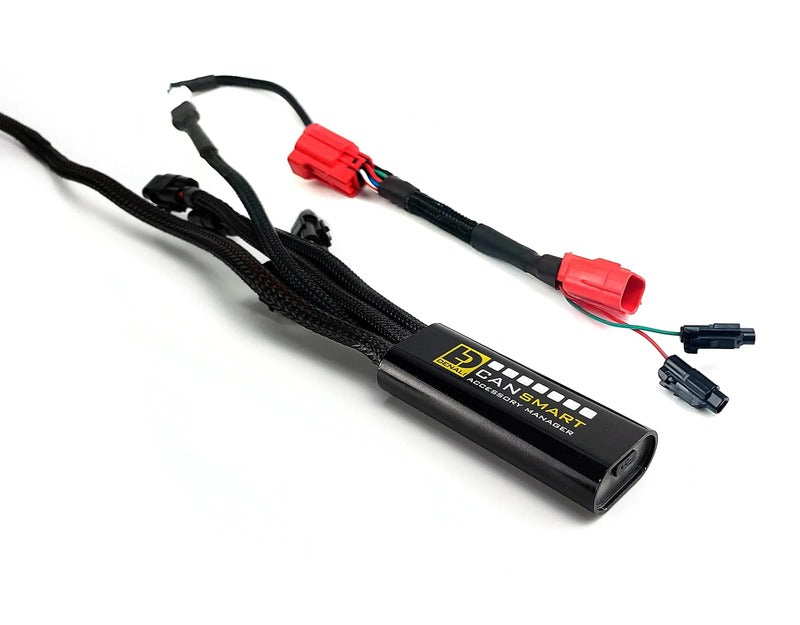

Harness the flexibility and intelligence of your Yamaha Ténéré's CAN bus electrical system to make accessory installation much easier with the new and improved DENALI CANsmart™ Controller GEN II.

The DENALI CANsmart™ Controller allows for plug-and-play installation and integrated control of up to four accessories to enable dozens of customizable settings that can be controlled directly from your Ténéré's hand controls or the CANsmart™ Accessory Manager software.

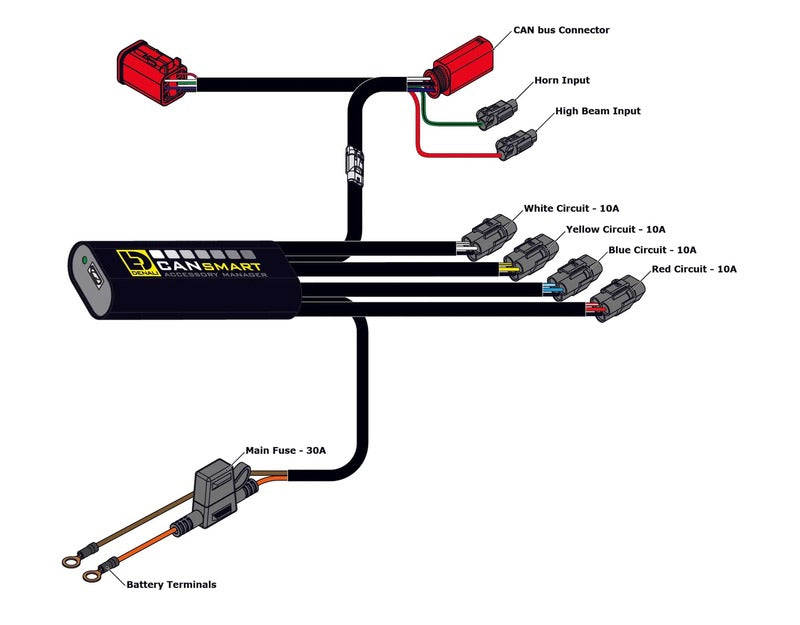

The CANsmart's four circuits are pre-programmed to connect and independently control two sets of DENALI 2.0 lights, a SoundBomb horn, and our B6 auxiliary brake light.

Gen II – More features, more performance, more versatile

Unlike the Gen I, the Gen II can deliver a full 10 amps of continuous current to all four circuits and each circuit can be configured to operate all accessory types. The maximum current draw for the entire device is 30 amps continuously. The Gen II also features two new auxiliary light settings that can increase your visibility.

Technical data:

• Product name: DENALI CANsmart™ Controller GEN II
• Designation: DENALI CANsmart™ Controller GEN II
• Volume (cm³): 2740
• Weight (g): 789
• Length (mm): 200
• Width (mm): 133
• Height (mm): 103

Features

• High/low sync - Switch between programmable high/low beam setting with the factory high beam switch.
• ON/OFF and dimming - Turn your primary light set ON/OFF and change the intensity level directly from your original vehicle switch.
• Modulate lights - Improve your visibility to other drivers by modulating the additional headlights.
• Flash to pass - Attract attention by flashing the additional headlights three times quickly when the high beam switch is activated.
• Plug & Play horn installation - Easily connect powerful aftermarket horns without additional wiring harness or relay.
• Strobe with horn - Automatic flashing of the additional headlights when the horn is pressed, regardless of the horn installed.

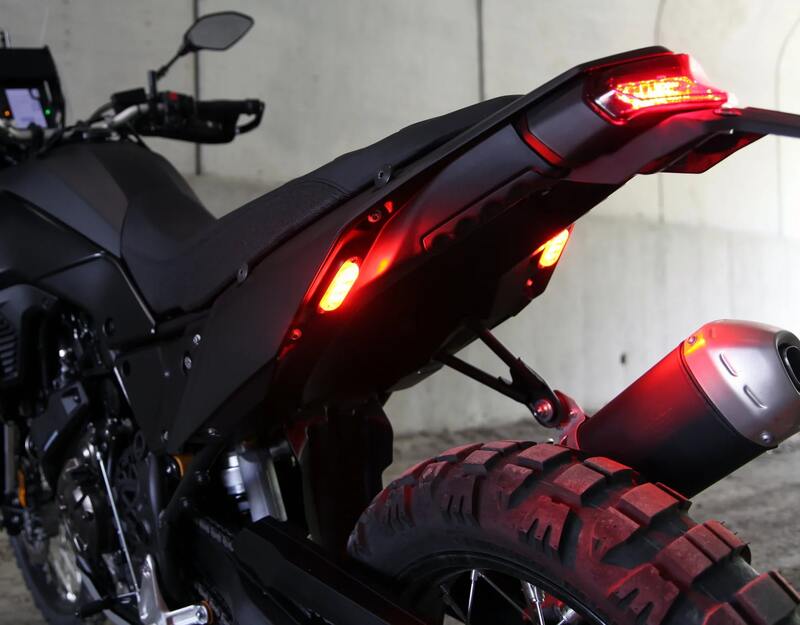

• Deceleration activated “Smart Brake” technology - Activation of your additional brake light through real-time speed measurement, even before the brake is applied.
• Flashing pattern braking - Four different flashing patterns make your additional brake light visible to following vehicles.
• Circuit function selector - Operate each accessory on each of the four circuits by simply selecting it from the CANsmart software drop-down menu.
• Switched power source - Providing a clean switched 12V power supply that turns on and off with your ignition.
• Delay timeout - Setting a delayed timeout for accessories that remain powered for up to 30 seconds after the motorcycle is turned off.
• Onboard power - Ideal power supply for GPS, phone, heated devices or other electronic devices.

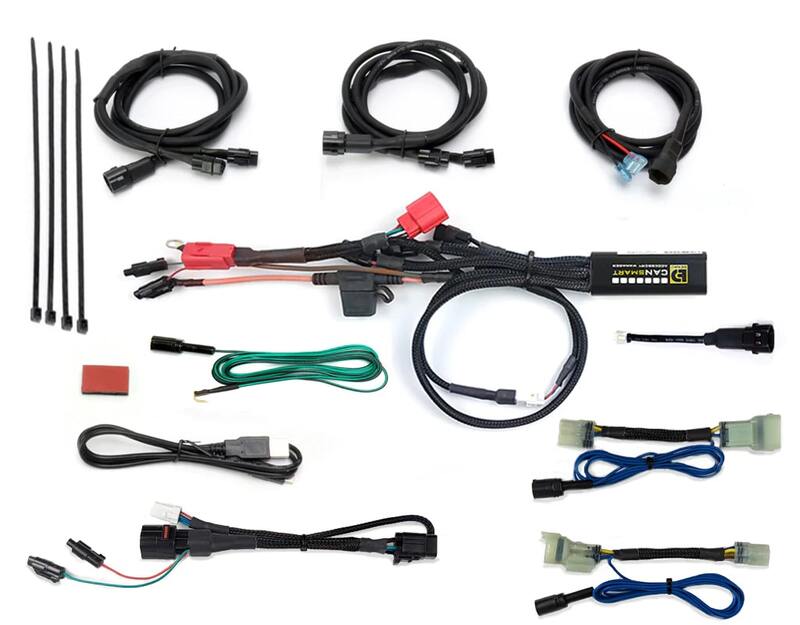

What's in the box?

• CANsmart™ controller
• 4-way high beam wiring harness (for models with color TFT display)
• 6-way high beam harness (for models with LCD display)
• Euro5 pass-through wiring harness (Euro5 models from 2022)
• Euro4 Pass-through Wiring Harness (2019-2022 Euro4 Models)
• (x2) 5.5ft long light extension cables
• 5ft SoundBomb Horn Extension Cable
• B6 brake light wiring adapter
• Cable ties
• Self-adhesive Velcro
• Micro USB programming cable

Vehicle equipment

• Yamaha Ténéré 700 (2019 - 2022)
• Yamaha Ténéré 700 Rally Edition (2020 - 2022)
• Yamaha Tenere 700 World Raid (2022 - 2023)
• Yamaha Ténéré 700 (2023)
• Yamaha Tenere 700 Rally Edition (2023)
• Yamaha Tenere 700 Extreme Edition (2023)
• Yamaha Ténéré 700 Explore Edition (2023)
