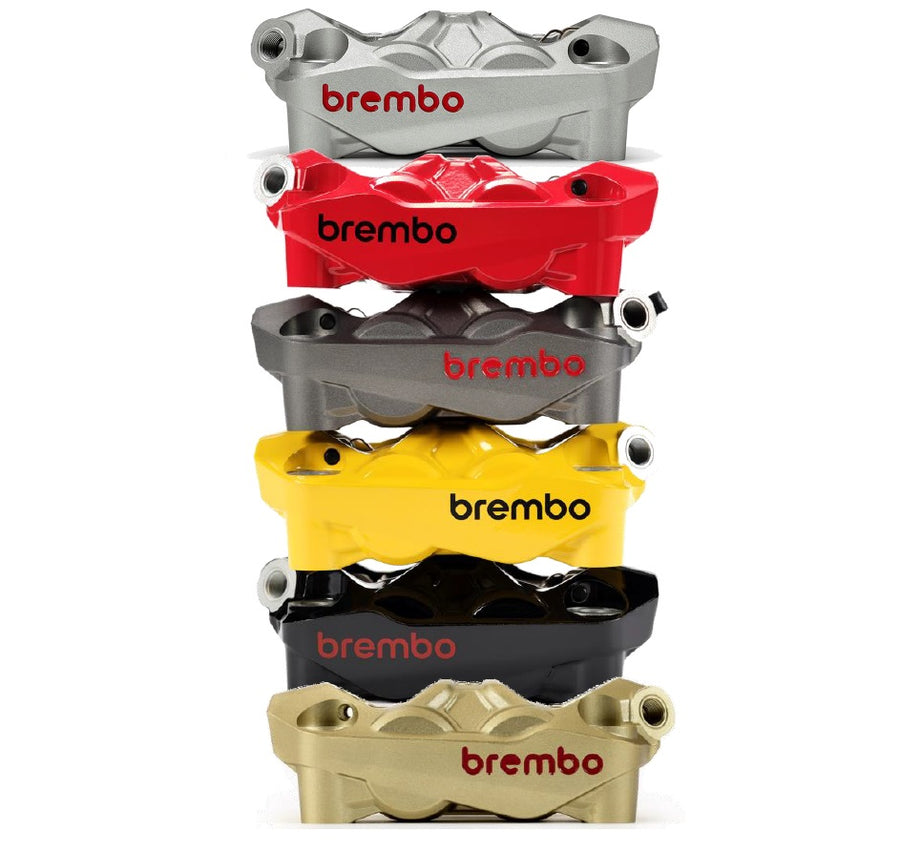

Ducati Panigale V4 [2025] - Hypure brake caliper right

BREMBO Hypure brake caliper right for the Ducati Panigale V4

The BREMBO Hypure brake caliper right is intended for the Ducati Panigale V4 from 2025. Its asymmetrical construction combines reduced weight with high resistance and precise control when braking.

Function and construction

Compared to reference calipers of the same class and application, the asymmetrical design allows for a 10% weight reduction without compromising rigidity. Advanced heat transfer supports consistent braking performance. The patented spring/pad/pin system with a specially developed contact surface minimizes the residual torque.

• One-piece, radial design for the front right
• 4 pistons with Ø 30 mm
• Aluminum, CNC milled
• Titanium colored version
• 100 mm center-to-center distance

Technical data

• Type: Radial
• Construction: Monobloc or one-piece
• Suitable for use with two discs
• Disc compatibility: Ø 290 to 340 mm, thickness 5 mm
• Recommended M/C: 17 Ø mm

Vehicle assignment

The brake caliper fits the Ducati Panigale V4, built in 2025. The position is at the front right.

The combination of asymmetrical shape, controlled heat transfer and the specially coordinated spring, pad and pin arrangement supports finely adjustable braking characteristics. The clear design with a titanium-colored surface complements the technical focus of the Hypure brake caliper.
